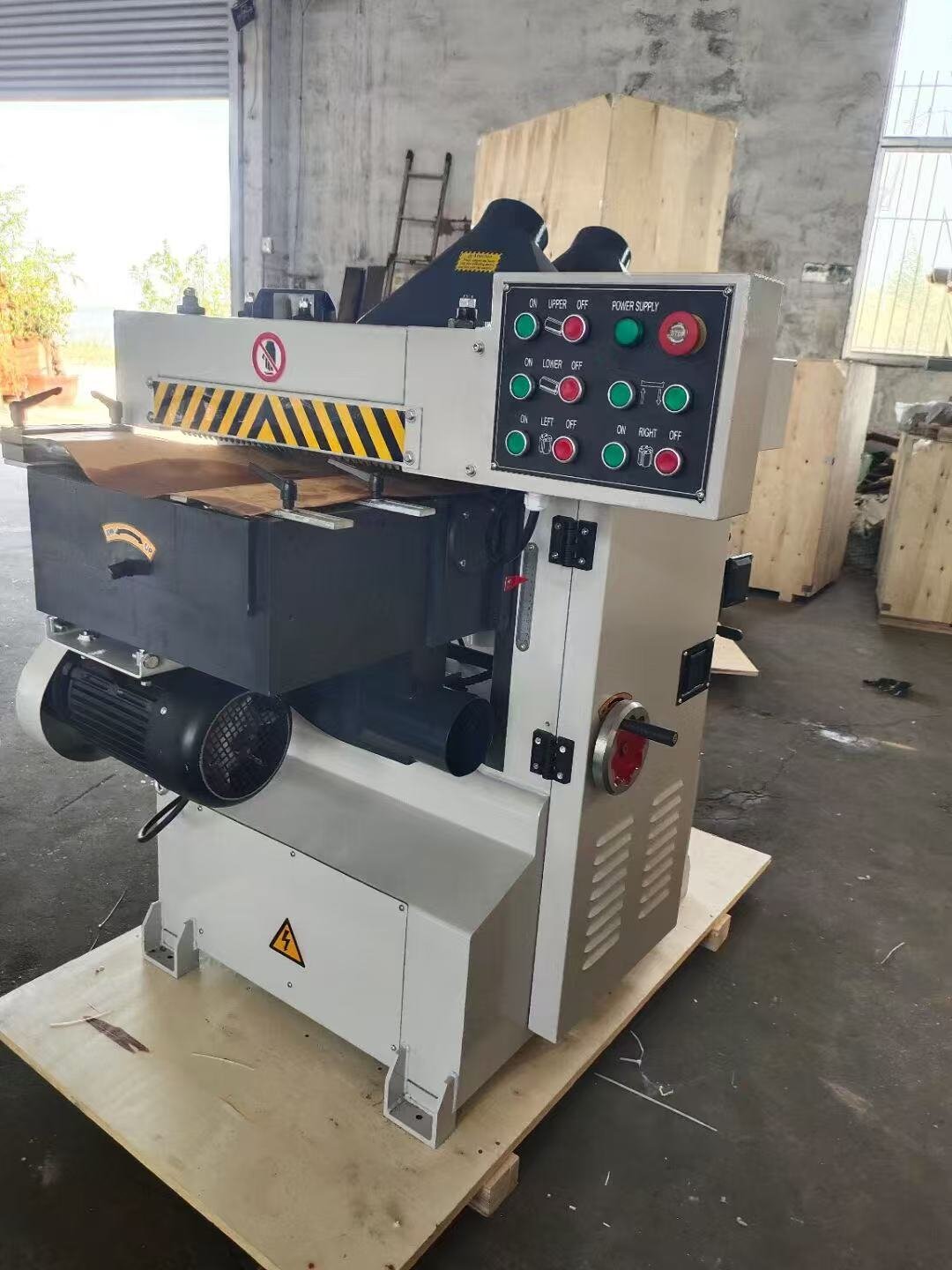

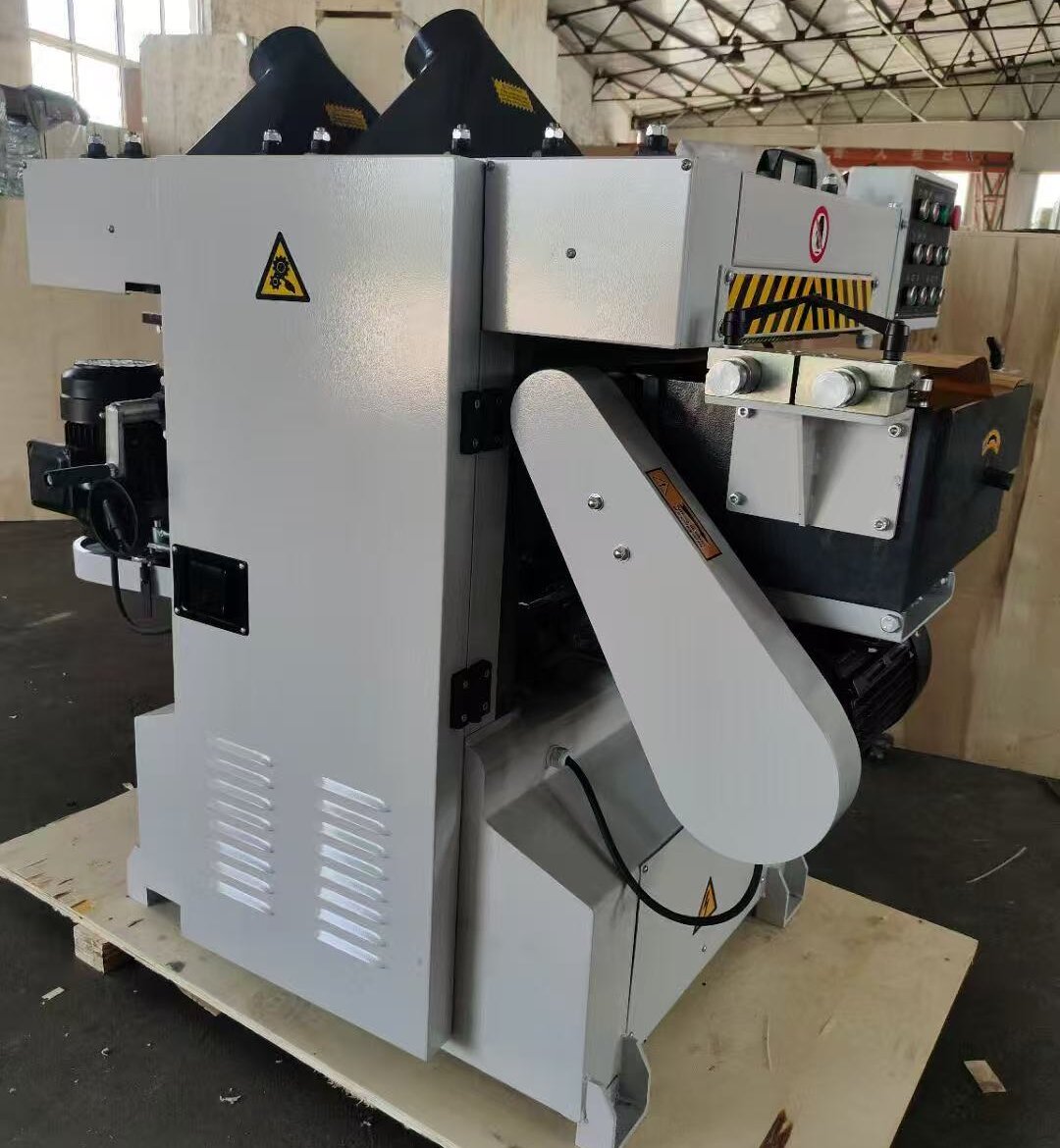

Professional Electric Thickness Planer for Smooth Surfacing

Key Features

• 2-in-1 Function: Combines planer and thicknesser for versatile woodworking..

• Adjustable Depth Control: Precision planing depth from 0.1mm to 5mm.


• Dust Extraction Port: Compatible with vacuum systems for clean workshop operation.


• Heavy-Duty Cast Iron Base: Reduces vibration for smooth wood surfacing.


• 3-Blade Cutter Head: Carbide-tipped blades ensure long-lasting sharpness.

Technical Specifications

• Motor Power: 3HP (220V/50Hz)

• Max Planing Width: 15 inches (380mm)

• Planer Thickness: 6mm to 150mm

• Blade Speed: 8,000 RPM

• Weight: 250 lbs (113kg)

User Value Summary

• Time saving: more than 10 times higher efficiency than manual planning (measured data).

• Material saving: precise control can reduce wood waste by 5%~8%.

• Professional grade effect: directly meet the surface requirements before sanding (Ra≤3.2μm).

Advantages of This Machine

• High Efficiency And Energy Saving: The press planer adopts advanced pressure plate technology, which can flatten the surface of wood quickly and efficiently and save energy.

• High Precision: the pressure plate and planer knife of the press planer are processed with high precision, which can ensure the flatness and smoothness of the wood surface.

• Easy Operation: The press planer adopts PLC automatic control system, which is easy and convenient to operate and does not need too much manual intervention.

• Convenient Maintenance: the structure of press planer is simple, easy to maintain and repair, which can improve the service life of the equipment.

• Safe And Reliable: the press planer adopts multiple safety protection measures to ensure the safety of operators, and also can ensure the stability and reliability of the equipment.

• Wide Range Of Application: The press planer is suitable for flattening and planing all kinds of wood, which can meet the needs of different industries and fields.
