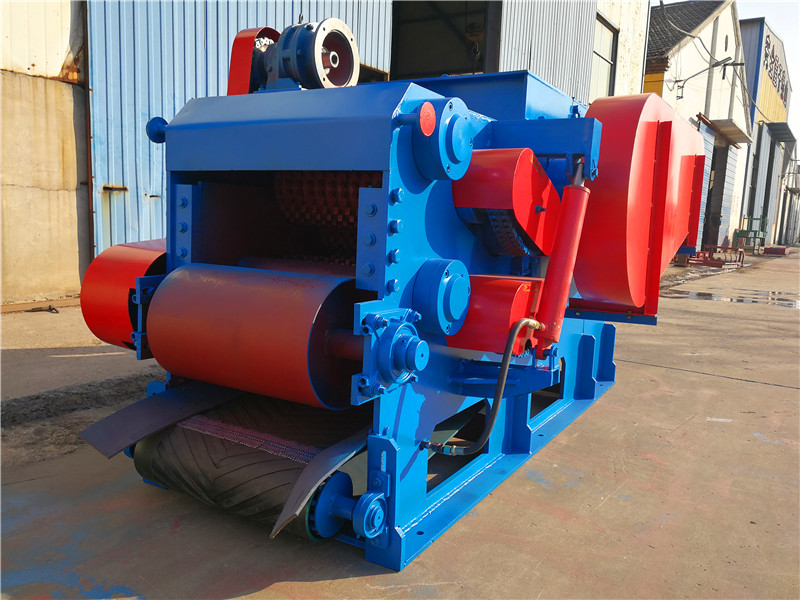

Wood Crusher Machine Shredder

This wood crusher is designed for woodworking waste, branches, plates, etc. It can quickly crush the waste into reusable wood chips or pellets, which is suitable for furniture factories, biomass energy processing and other fields. It is characterized by high-efficiency crushing, low noise, easy maintenance, etc., which helps enterprises to reduce the cost of waste disposal.

Contact Now

Product Details

Product Features

High-efficiency crushing: adopting high hardness alloy knives/hammer blades, with long service life and a 30% increase in crushing efficiency.
Intelligent control: optional PLC system, real-time monitoring of the operating status, to avoid overload.
Environmental protection and low noise: closed design to reduce dust spillage, in line with environmental standards.
Safe and reliable: Equipped with emergency brake and anti-bounce device, CE/ISO certified.
Multi-scenario application: support customized feed opening size, adaptable to different wood types.

Product Parameter

Model	BX216
Input conveyor length(m)	6
Output conveyor length(m)	11
Tool roll diameter（mm）	600
Feed port size（mm）	230*540
Flying knife number	2pc
Tool roll speed (r/m)	550
Maximum diameter of processing raw material（mm）	230
Feeding speed（m/min ）	35
Wood chips size（mm）	30-50
Capacity（ton/h）	7-8
Main motor power（kW）	55
Feed roller motor power（kW）	3-4
Oil pump motor power（kW）	1.5*1
Weight（kg）	4070
Overall size（mm）	1800190012

Application Scenarios

🪑 Furniture manufacturing: processing edges, woodworking waste.
🌳 Landscaping: crushing tree branches and trunks.
🔥 Biomass fuel: produce wood pellets for burning or compression.

Advantages over conventional processing

Traditional methods	Crusher solutions
Manual chopping/incineration	Automated shredding, no pollution
Accumulation of waste material takes up space	Instant processing, improved space utilization
Waste material has no value	Generate saleable wood chips/pellets
