Why poplar and beech veneer dryings are different
In the realm of wood veneer manufacturing where excellence is pursued, the drying process is the ultimate proving ground that determines success or failure. When employing a roller veneer dryer, the guiding philosophy for treating veneer sheets from different tree species could not be more divergent. Poplar, with its softness and pronounced expansion/contraction properties, presents a unique set of process challenges; whereas the hard nature and high sensitivity to coloration of beech constitute a wholly different set of problems. In short, the art of drying poplar lies in taming deformation and fissuring, while the science of drying beech is about resisting discoloration and stress trauma. Discerning these two diametrically opposed paths is the touchstone that separates a master craftsman from an ordinary technician.
Analysis of Core Differences
The fundamental divergence between these two woods stems from their intrinsic physical nature. Poplar, a low-density softwood (air-dry density approx. 0.3-0.5 g/cm³), possesses a loose, porous fiber structure. Its Achilles' heel is an extremely high shrinkage rate, causing it to contract violently upon moisture loss and readily inducing severe warping or even "tile-like deformation." Therefore, the primary mission of poplar drying is to execute a slow, gentle dewatering process, with the core objective being "shape preservation," placing the prevention of physical distortion at the highest priority.
In stark contrast is beech, a high-density hardwood (approx. 0.6-0.7 g/cm³), with a dense grain and robust fibers. Its dimensional stability far surpasses that of poplar, making it resistant to warping. However, its high density creates another peril: immense internal stress induced by uneven drying, sufficient to cause longitudinal splitting along the grain. More critically, beech is rich in tannic acid, which undergoes a chemical reaction with oxygen at high temperatures, resulting in unsightly yellowing or browning of the veneer surface, thereby destroying its value as a premium finish. Consequently, the drying strategy for beech must be swift and balanced dewatering, with the core objective being "quality preservation," focusing intently on suppressing chemical discoloration and stress cracks.
Mastering Poplar: The Path of Utmost Gentleness
To tackle poplar, the core lies in diffusing the dual dilemmas of its "softness" and "drastic change," requiring the dryer's parameters to be calibrated for the utmost finesse.
The Law of Temperature Control: Low and Slow is an Ironclad Rule. The drying process must commence with a gentle temperature ramp-up curve, initiating the inlet temperature within the 60°C - 70°C range and climbing gradually. A momentary blast of high heat will instantly seal the surface, imprisoning internal moisture vapor. As this vapor expands, the tender fibers will rupture, creating irreversible cracks. The strategy, therefore, is to cultivate a "low temperature, high humidity" microenvironment in the initial phase, allowing the surface layer to warm progressively and granting ample time for internal moisture to migrate outward, thus achieving a balanced dry from the inside out.
Speed and Tension: The Key to Eradicating Wrinkles. Poplar's pliable fibers, caught in the vise of roller pressure and conveying tension, are highly susceptible to permanent creasing. The countermeasures are: to drastically reduce the clamping force of the rollers, provided slippage is prevented; concurrently, the conveyor tensioning system must avoid excessive tightness, with a micro-tension or floating mode being preferable. This grants the veneer sheet leeway to self-adjust when encountering minor imperfections, rather than being forcibly flattened. Of paramount importance, the veneer sheet must be absolutely flat before entering the rollers, as any microscopic fold will be permanently imprinted.
Managing Moisture: Beware of Excess. Over-drying renders poplar abnormally brittle and stiff, robbing it of toughness and rendering it prone to snapping during subsequent processing. The operator must vigilantly monitor the moisture content at the outlet, terminating the cycle once the target value (typically 8%-12%, depending on use) is reached. Retaining a degree of suppleness will prove beneficial for the final pressing and laminating stages.

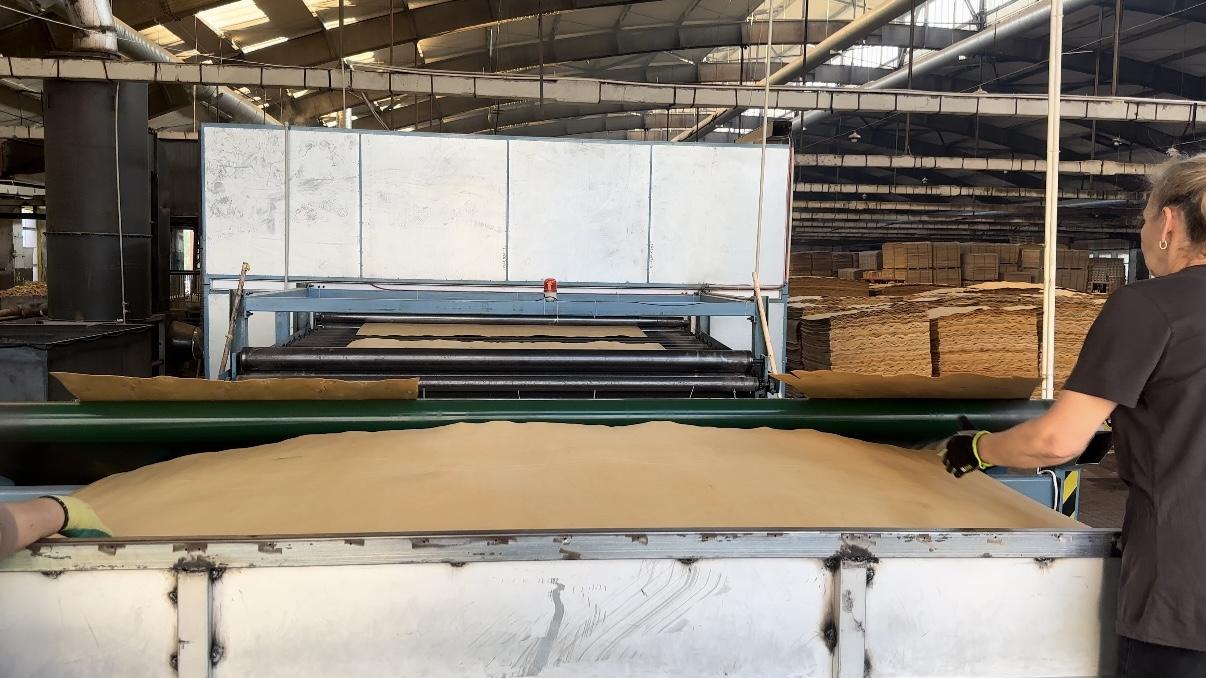

Conquering Beech: The Science of Precision and Guardianship
Confronting beech, its attributes of "hardness" and "proneness to discoloration" transform the drying process into a precise science.
The Essence of Temperature Control: A Vigilant Defense Against Heat. The high concentration of tannins means that elevated temperatures will trigger a chemical reaction with oxygen, ruthlessly stripping the veneer of its value as a high-end finish. The maximum temperature threshold must be stringently defended. For rare or dark-colored beech, commencing from an even lower temperature point is advisable.
Airflow and Uniformity: Targeting Stress Cracks. Beech's high density results in poor thermal conductivity. If hot air circulation is imbalanced, it will inevitably cause localized overheating of the veneer while other areas remain damp. This drastic temperature differential generates immense internal stress, precipitating dangerous longitudinal cracks. The solution is twofold: first, intensify the penetrating power of the airflow to eliminate "dead zones," ensuring thermal energy reaches every corner of the veneer sheet uniformly; second, flatten the peaks of wind speed. Although uniformity is the goal, excessively high wind speeds also act as a physical buffeting force on the hard surface, potentially damaging fibers. Therefore, the target should be to create a gentle, consistent, and uniform airflow.
End-of-Cycle Handling: Rapid Cooling to Lock Form and Stabilize. As beech nears the dry endpoint, it harbors a significant reserve of residual stress. Discharging it at an excessively high temperature allows retained heat to continue driving micro-deformations or stress release. Installing a cooling zone at the end of the dryer becomes essential. Here, the scorching-hot veneer sheet rapidly exchanges heat with the ambient air, and only after its temperature drops below 40°C should it be rolled up. This action "locks in" the dimensions and stabilizes the stress, yielding a final product with superior flatness.
Conclusion: Reverence for the Material's Nature
The cardinal rule is absolute: the process parameters for poplar and beech must never be conflated, lest it invites a deluge of defective veneer sheets. Furthermore, experienced manual oversight remains indispensable. Even amidst widespread automation, periodically sampling to detect early signs of wrinkling, discoloration, or cracking, and making timely micro-adjustments to parameters, remains the benchmark of an exceptional technician. In the final analysis, drying poplar is an act of "gentle nurturing," while drying beech is an exercise in "meticulous guardianship." The key to success lies in profoundly comprehending and reverently respecting the innate character bestowed upon each wood by nature.
