Which Veneer Dries Fastest in Dryers?
If you run a plywood mill, a veneer trading business, or you are specifying a drying line for a new plant, one question eventually comes up: which wood species is actually the easiest to dry? Not just “can it be dried,” but which veneer flies through the dryer with the least energy, the fewest rejects, and the most forgiving parameters? The short answer — and the one every experienced operator agrees on — is poplar.

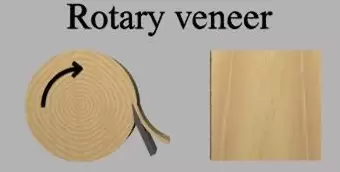

This article breaks down exactly why poplar veneer is the fastest and easiest to process in a roller or mesh veneer dryer, how it compares to other commercial species, what can still go wrong even with an “easy” wood, and how to set your dryer so poplar gives you maximum throughput with minimum headaches.
1. Why poplar wins: the physics of fast drying
Drying speed is governed by three things: density, pore structure, and extractives. Poplar scores perfectly on all three.
Low density. Poplar (populus species including P. euramevicana, P. tomentosa, P. deltoides) has an air-dry density of roughly 0.35 to 0.50 g/cm³. Compare that to oak at 0.75, beech at 0.72, or rubber wood at 0.50–0.55. Lower density means fewer wood fibers per unit volume, which means fewer fibers to heat and less water held inside those fibers. The dryer does not have to work as hard.
Open, porous structure. Poplar is a diffuse-porous hardwood with large, simple vessel elements. Water moves through these vessels like a network of tiny pipes. Research measuring moisture diffusion coefficients found poplar at approximately 9.61 × 10⁻⁶ cm²/s, compared to Pinus sylvestris (Scots pine) at about 7.06 × 10⁻⁶ cm²/s. Higher diffusion coefficient = water escapes faster = shorter dwell time in the dryer = more cubic meters per hour.
Minimal extractives. There are no resins like in pine, no rubber proteins like in rubber wood, no high sugar content. Nothing to soften, clog, ferment, or gum up rollers and mesh belts. The veneer enters the dryer clean and exits clean.
2. The full species ranking: from easiest to hardest
Here is how common commercial veneer species stack up in a typical continuous dryer, from fastest/easiest to slowest/most difficult:
Rank | Species | Why | Drying Difficulty |
|---|---|---|---|
1 | Poplar | Low density, open pores, no resins | ⭐ (Easiest) |
2 | Pine / Spruce (softwoods) | Open structure, dries fast, but resin softens and sticks to rollers | ⭐⭐ |
3 | Rubber wood | Medium density, but high sugar/protein = must dry within 2 hrs or mold sets in | ⭐⭐⭐ |
4 | Birch / Eucalyptus | Higher density, slower internal diffusion, prone to case-hardening | ⭐⭐⭐⭐ |
5 | Oak / Larch | Very dense and/or high resin/extractives, longest dwell time, tightest parameters | ⭐⭐⭐⭐⭐ (Hardest) |
Poplar is in a class of its own. Even pine — which also dries relatively fast — brings resin headaches that poplar simply does not have.
3. What “easy to dry” actually means on the production floor
When veneer operators say a species is “easy,” they mean four specific things:
Higher line speed. Because poplar releases moisture quickly, you can run the dryer at a faster VFD setting without over-drying or leaving the core wet. On a 3-deck roller dryer, poplar 2.5 mm thick might run at 18–22 m/min. The same machine on eucalyptus at the same thickness might need 12–15 m/min.
Wider temperature tolerance. Poplar tolerates a broad range. Preheat at 80–100°C, main dry at 120–150°C, cooling below 40°C. You can push the main zone hotter to squeeze more throughput without instantly ruining the sheet. Try that on oak and you get surface case-hardening and internal checking.
Lower reject rate. No resin to cause sticky rollers. No sugar to feed mold. No protein to sour. The biggest reject risks with poplar are over-drying (making it brittle) and thermal warp from uneven heat. Both are easy to control with proper zoning and speed.
Less energy per cubic meter. Faster throughput + lower temperature ceiling = less fuel burned per unit of output. In mills tracking cost per cubic meter dried, poplar consistently comes in lowest.
4. Where poplar can still go wrong
“Easy” does not mean “foolproof.” Even poplar veneer has failure modes in a dryer:
Over-drying and brittleness. Because it dries so fast, if the line speed is too slow or the temperature too high, poplar veneer can drop below 5% MC. At that point it becomes brittle, edges crack during handling, and clipper yield drops. Target final MC should stay in the 8%–12% range for face/back and 10%–14% for core.
Thermal warp from uneven heating. Poplar has low internal strength when hot. If top and bottom air jets are unbalanced, or if one side of the dryer is hotter, the sheet will curl toward the hotter side. Modern dryers solve this with balanced upper/lower air boxes and roller-leveling sections, but older or poorly maintained machines will show curl on thin poplar.
Thickness matters. Thin poplar (1.2–1.7 mm) dries almost instantly and is prone to edge burn if the main zone exceeds 130°C. Medium poplar (2.0–3.0 mm) is the sweet spot — fast but stable. Very thick poplar (>4 mm) starts to approach the diffusion limits and needs longer dwell or higher temperature, eating into the speed advantage.
5. Recommended dryer settings for poplar veneer
Based on field data from mills running poplar on Shine dryers and comparable equipment:
Parameter | Thin (1.2–1.7 mm) | Medium (2.0–3.0 mm) | Thick (3.5–5.0 mm) |
|---|---|---|---|
Preheat zone | 80–90°C | 80–100°C | 90–100°C |
Main drying | 110–130°C | 120–150°C | 130–155°C |
Cooling zone | <35°C exit | <40°C exit | <40°C exit |
Line speed (3-deck) | 22–28 m/min | 16–22 m/min | 10–14 m/min |
Target final MC | 8%–10% | 8%–12% | 10%–14% |
These ranges assume a roller veneer dryer or mesh dryer with zoned temperature control and VFD-driven conveyor. Batch press dryers also handle poplar well but at lower hourly volume.
6. Why this matters for dryer selection
Knowing that poplar is the fastest-drying species has direct implications for how you size a drying line:
Higher deck count pays off faster. Since poplar runs fast, a 3-deck or 4-deck dryer does not just save floor space — it multiplies an already-high throughput. A 4-deck line on poplar can push 25–35 m³/h depending on sheet size and thickness.
You can often downsize the heat source. Because poplar needs less energy per cubic meter, a smaller thermal oil boiler or biomass furnace may suffice compared to what you would need for eucalyptus or mixed hardwood. Capital savings on the heating system alone can be significant.
Mesh belt vs. roller. For very thin poplar (below 1.5 mm), mesh belt dryers are often preferred because they prevent edge curl better than rollers. For medium and thick poplar, roller dryers are the workhorse — lower maintenance, better grip, and excellent for high-volume continuous lines.
7. The bottom line
If you process poplar veneer, you are working with the most dryer-friendly species in commercial plywood production. Low density, open pores, no resins, no sugars — it is the closest thing to an ideal drying substrate. Your dryer will reward you with high line speeds, low reject rates, and minimal energy per cubic meter.
But “easy” still demands respect. Set your zones correctly, watch your final moisture, and do not let thin stock sit in a hot zone too long. Do that, and poplar will fly through your dryer faster than anything else you throw at it.
At Shine Machinery, we have engineered roller and mesh dryers specifically for high-volume poplar operations across Asia, Eastern Europe, and South America. Whether you need a single-deck starter line or a 4-deck high-output system, we size every machine around your veneer species, thickness range, and daily target — so every sheet comes out flat, on-spec, and ready for the press.
Send us your species mix, daily volume, and building dimensions. We will tell you exactly what dryer configuration gives you the best return — and if you are running mostly poplar, we will show you how to squeeze the most cubic meters per hour out of every meter of machine length.
